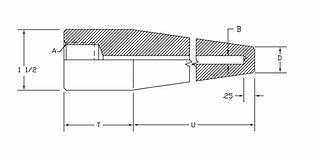

WELD-IN Thermowells
600 Series
Order Example:
601 - P - 6 - 3 - SP
Part Number
U Insertion Length
T Length
(Include Lag)
Optional
Plug and Chain
PART "A" "B" "D"
NO. NPT BORE SIZE DIAMETER
600 1/2" .515" .875"
501 1/2" .437" .875"
502 1/2" .390" .750"
503 1/2" .265" .750"
OPTIONAL PLUG AND CHAIN:
BP Brass Plug and Chain
SP Stainless Steel Plug and Chain
